A small articulated loader is often the right machine when a job demands more than a walk-behind loader or compact tractor can handle, but a skid steer feels too wide, heavy, or disruptive. Its articulated steering lets the front and rear sections follow different paths, helping the machine work around buildings, through gates, and beside landscaping with less scuffing. The buying decision should start with the heaviest materials, highest load placement, narrowest access point, and most-used attachment—not engine horsepower alone. A machine that fits the site but cannot safely handle the intended load will slow production; one that exceeds the job’s size and cost requirements can sit underused.
A small articulated loader is a compact wheeled loader with a pivot joint between its front and rear frames. Rather than steering primarily by skidding the tires, it turns at the articulation point. Many models also use an oscillating joint or articulated-oscillating frame, allowing the wheels to follow uneven ground while helping the loader retain contact and traction.
That design is especially useful for property maintenance contractors, landscape installers, masonry crews, utility work, small site-development projects, agricultural support tasks, and contractors moving pallets or bulk materials around constrained jobsites. It can carry soil, aggregate, mulch, feed, debris, pavers, pipe, and palletized materials, then switch to forks, grapples, sweepers, brooms, augers, snow equipment, or specialty implements where the hydraulic system and coupler allow.
Its advantage is not that it replaces every compact loader. A small articulated loader is generally a poor fit if the work repeatedly requires forceful digging into hard piles, heavy demolition handling, or the high auxiliary hydraulic demand of specialized attachments. In those situations, a skid steer, compact track loader, excavator, or larger wheel loader may deliver better production.
Before comparing brands or dealer quotes, write down the recurring tasks that must be completed by the loader. The right size is determined by the demanding work performed regularly, not by the light task it can complete most easily.
For each task, use the actual material and attachment configuration. A rated capacity shown with a standard bucket does not automatically establish what the loader can safely lift with long pallet forks, a heavy grapple, or a raised boom. Attachment weight and load center change stability.
Loader specifications are easy to misread because manufacturers may publish several capacity-related values. They are useful only when compared under equivalent conditions. Ask the dealer to identify the rating that applies to the machine, tires, counterweight configuration, attachment, and lift position you expect to use.
| Measure | What It Tells You | Why It Matters | What to Verify |
|---|---|---|---|
| Rated operating capacity | The manufacturer’s stated working load limit under defined conditions | Useful starting point for routine bucket and material-handling work | How the rating is calculated and which attachment/configuration it assumes |
| Static tipping load | Load at which the machine may begin to tip in a stated position | Shows a stability boundary, not a normal working target | Whether measured straight ahead or articulated, and at what lift position |
| Lift capacity at a point | Load the boom can lift at a specified height and reach | Important for pallets, trucks, trailers, and elevated placement | Load center, fork length, boom position, and attachment weight |
| Hinge-pin height and reach | Maximum height and forward reach of the loader linkage | Determines whether the machine can clear or reach the target | Clearance at full dump, reach at working height, and actual bucket geometry |
| Operating weight | Machine weight in stated configuration | Affects trailering, ground pressure, stability, and surface impact | Included attachments, ballast, cab, tires, and fluid-filled tires if offered |
For pallet work, the load center deserves special attention. A pallet’s weight acts farther forward on long forks than a dense bucket load held close to the machine. That forward leverage can reduce the practical lift limit. The most useful demonstration is to have the dealer show the intended fork carriage and a representative load at the height where your crew will work.
A larger small articulated loader may offer more lift, but it may also need more room to turn, require a larger trailer, add cost, and leave greater tire marks on delicate surfaces. Conversely, the smallest machine that passes through a gate may be too light for recurring pallet loads or may lose stability on uneven ground. Select a unit with enough capacity margin for normal work while retaining the access and surface benefits that made an articulated machine attractive.
The articulation joint allows a small articulated loader to turn without the tire scrub associated with skid steering. This is valuable around finished turf, interlocking pavers, curbs, and landscaped properties. It does not mean the machine is incapable of damaging a surface. A loaded machine turning sharply, traveling over wet ground, or using an aggressive tire pattern can still mark turf or displace loose material.
Measure more than overall width. The front attachment can swing through a different arc from the rear of the machine during a turn. Operators also need room to articulate, align with a pile or pallet, and reverse safely. On a confined site, a short demo route through the actual access points is more informative than a published turning-radius figure.
Tire selection should follow the ground you work on most. Turf-friendly patterns can reduce disturbance on maintained properties but may trade some bite in loose material. More aggressive construction tires can improve traction and durability but may be less suitable for finished lawns and paving. Ask about available tire options, wheel spacers, chains where appropriate, and the effect each choice has on overall width and stability.
The bucket is only the starting point. A well-matched attachment package can make a small articulated loader productive across multiple crews or seasons, while poorly matched implements create compatibility problems and waste money.
| Attachment | Best Uses | Main Advantage | Key Check Before Buying |
|---|---|---|---|
| General-purpose bucket | Soil, mulch, aggregate, light debris | Core material-moving tool | Bucket width, heaped capacity, cutting edge, and machine lift limits |

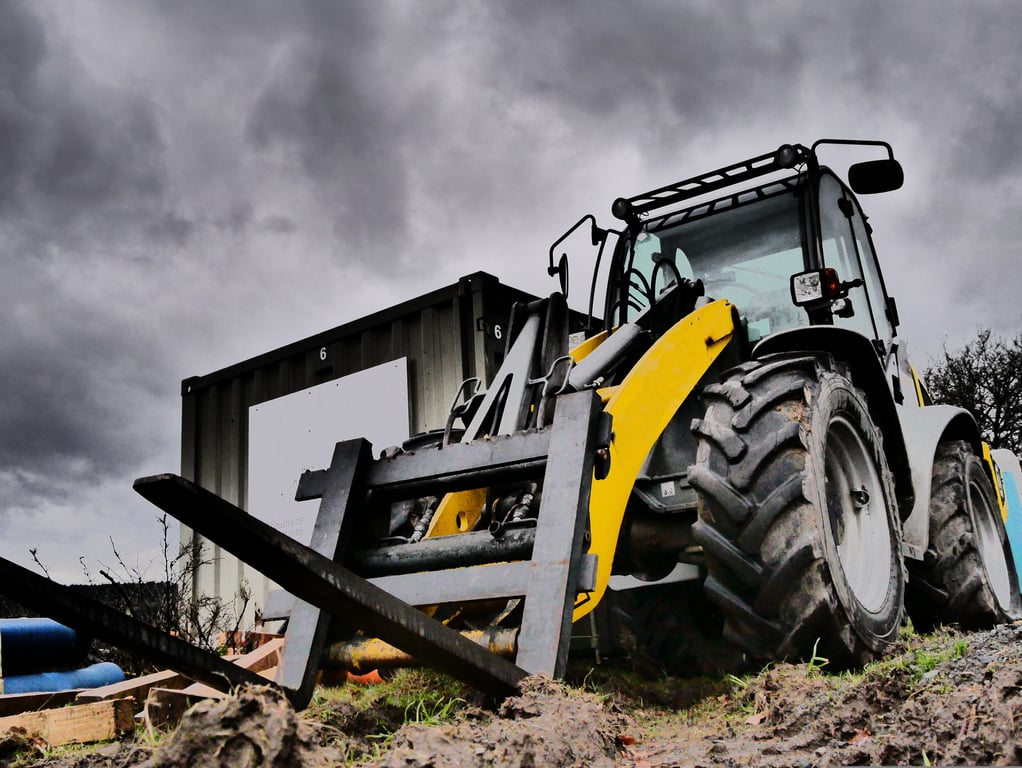

| Pallet forks | Pavers, block, lumber, bagged materials, jobsite deliveries | Turns the loader into a compact material handler | Fork weight, load center, carriage compatibility, visibility, and rated lift at height |
| Grapple bucket or grapple fork | Brush, logs, demolition debris, irregular materials | Secures loose or awkward loads | Auxiliary hydraulic connections, attachment weight, and hose routing |
| Auger | Posts, planting, signs, light foundation-related holes | Reduces manual digging and machine changes | Hydraulic flow and pressure requirements, torque needs, and operating visibility |
| Broom or sweeper | Hardscape cleanup, sidewalks, yards, light site maintenance | Extends use beyond loading | Hydraulic demand, debris control, and surface suitability |
| Snow attachment | Plowing, pushing, stacking, property maintenance | Improves off-season utilization | Mounting, hydraulic functions, tire traction, ballast, and visibility |
Coupler design is central to attachment flexibility. Some loaders use proprietary systems, while others may offer a more widely used coupler arrangement or adapters. A proprietary coupler can work well if the local dealer supports the attachment range you need. It becomes restrictive if you already own implements from another equipment platform or expect to source used attachments.
Check hydraulic requirements before assuming an attachment will run. Auxiliary flow and pressure, electrical controls, case drain needs, hose length, coupler style, and control functions can all matter. For attachments with moving parts, ask to operate the exact model on the prospective loader rather than relying on a general statement of compatibility.
The best alternative depends on the work cycle. A small articulated loader is particularly strong at transporting and placing materials on compact, finished, or access-limited sites. Other machines may be better where breakout force, digging, traction in soft conditions, or high-flow attachment performance are the priority.
| Machine Type | Usually Best For | Primary Strength | Main Limitation Compared With a Small Articulated Loader |
|---|---|---|---|
| Small articulated loader | Tight access, property work, pallet handling, landscaping, mixed material movement | Articulated maneuverability and relatively low tire scrub | May offer less digging aggression or specialized hydraulic capability than some alternatives |
| Skid steer loader | Hard digging, demolition support, loader-intensive construction work | Durable, compact platform with broad attachment availability | Skid turns can disturb finished ground; operating position and ride may be less suitable for some sites |
| Compact track loader | Soft ground, grading, earthmoving, traction-demanding work | Strong flotation and traction in many conditions | Higher undercarriage maintenance exposure and potentially greater transport and ownership burden |
| Compact tractor with loader | Light property maintenance and intermittent loader work | Can combine loader tasks with PTO-driven implements | Usually less purpose-built for repeated commercial loading and tight material-handling cycles |
Choose a skid steer or compact track loader when the job depends on frequent excavation, heavy breakout, grading production, or a proven attachment ecosystem tailored to that work. Choose a compact tractor when loader work is secondary to mowing, PTO implements, or light property tasks. Choose a small articulated loader when crews need to move, carry, and place materials efficiently without bringing an oversized machine into constrained spaces.
The purchase price is only one part of ownership cost. A low initial quote can become expensive if the machine requires attachments you did not budget for, cannot be transported with existing equipment, or depends on distant service support. Compare proposals on an equivalent configuration, including the coupler, bucket, forks, hydraulic options, tires, cab or canopy, lighting, warranty terms, delivery, and any required trailer changes.
Operating cost depends heavily on utilization and maintenance practices. Fuel use, tires, filters, fluids, wear items, unscheduled repairs, insurance, storage, financing, transport, and operator time all affect the real cost per productive hour. A loader that completes a material-handling task faster or avoids damage to a finished property can justify a higher acquisition cost, but only if that advantage occurs often enough in your work.
A rental comparison should include more than the stated rental rate. Add delivery or pickup, fuel, damage responsibility, attachment charges, cleaning requirements, insurance, and the cost of idle days caused by weather or scheduling changes. If rentals become frequent and the same machine is repeatedly requested, calculate whether predictable ownership costs would better serve the business.
Articulated loaders work in dusty, wet, abrasive conditions and often spend time carrying loads over uneven terrain. Daily care is not complicated, but skipped inspections can turn a small issue into costly downtime. Follow the specific operator’s manual and service intervals for the machine under consideration.
For a used small articulated loader, pay particular attention to the articulation joint and center-pivot area. Excessive movement, neglected greasing, damaged hoses routed through the joint, or inconsistent steering response can signal expensive repair needs. Have a qualified technician inspect a machine if its maintenance record is incomplete or if the seller cannot demonstrate all loader and auxiliary hydraulic functions under load.
A capable dealer can help match configuration to workload, but the buyer should ask questions that require specific answers. Bring your task list, site measurements, material types, and trailer information to the discussion.
Ask for a written quote that identifies the exact configuration. This prevents a common comparison error: judging one machine with a bucket against another machine priced without forks, auxiliary hydraulics, counterweight, or the tire package required for the intended work.
It can be an excellent landscaping machine when crews need to move mulch, soil, stone, plants, pallets, and debris through narrow access points. Articulated steering can reduce scuffing compared with a machine that turns by skidding its tires, but tire choice, weather, load weight, and operator technique still affect turf damage.
Many can handle pallet work, but suitability depends on the specific loader, fork attachment, pallet weight, load center, lift height, ground slope, and tire or ballast configuration. Do not use a general bucket capacity figure as proof of pallet-fork capability. Confirm the manufacturer’s applicable rating and conduct a representative demonstration.
Buy the smallest machine that safely meets your recurring lift, reach, attachment, and travel requirements with a reasonable margin. Start with the heaviest normal load and the narrowest access point, then verify transport limits and the need for a cab, counterweight, or particular tire package. Choosing solely by engine power or overall width can lead to a poor match.
They can be less costly for some applications because they use tires rather than a track undercarriage and may be easier to transport and work efficiently on finished sites. However, cost depends on purchase terms, hours used, tire wear, service support, attachments, and whether the machine can perform the required work without a second unit. Compare total job cost rather than assuming one design is always less expensive.
Renting is worthwhile when you are uncertain about lift capacity, access, attachment compatibility, or how often the machine will be used. Use the rental period to complete real work cycles and record production, fuel use, transport issues, and operator feedback. That information is far more useful than comparing brochure specifications alone.
A small articulated loader earns its place by making material handling easier in spaces where larger equipment is awkward or damaging. Select the machine around verified lift capability, real access dimensions, attachment requirements, ground conditions, transport needs, and dealer support. If those factors line up with your routine workload, buying can improve crew productivity; if they remain uncertain or seasonal, rent the same configuration first and test it on the jobs that will determine its value.
